Vision Measurement Machine VMM CMM Fixturing Kit Base Board Acrylic Transparent

Vision Measurement Machine VMM CMM Fixture Kits Base Board Acrylic Transparent

Base plates

The base boards are using acrylic material that allows for the use of contour light to observe the edge.
The precise base board ensures the vertical optical path and image.

There are two options for the base plates:

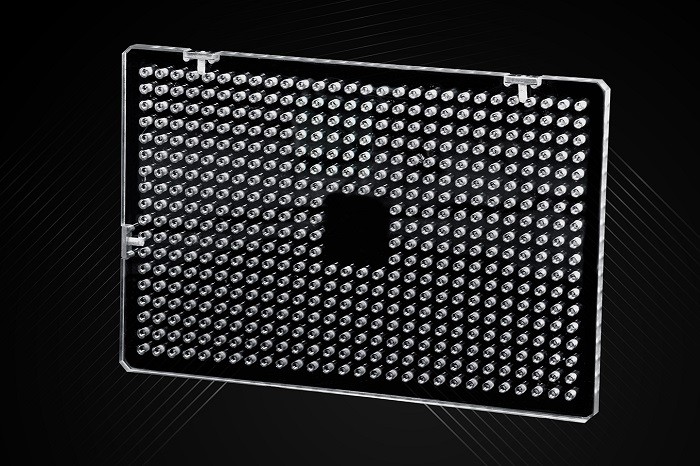

Holes Style: available to set up and check as many parts as possible at one time and offering a clear area in the centre of the plate.

Windows style: many windows ensures the clearest view of small parts.

Also Multiple size of the base plates are for option, for more information please contact our service staffs.
