|Place of Origin:||China|
|Model Number:||UNIMETRO-2D Inspect|
|Minimum Order Quantity:||1|
|Packaging Details:||Paper box|
|Delivery Time:||5 work days|
|Supply Ability:||30 per month|
|Fuzzy eliminating function:||Included||Rectangle measuring tools:||Detecting 4 sides in one time, achieve fast measuring|
|Multiple reports format:||Users can set the Excel report format based on requirement||Professional SPC function:||Included|
|Convenient label function:||Included||Coordinates alignment:||Offset, rotating, alignment function are available|
3d measuring software,
video measurement software
Powerful Probe Function 3D Measurement Software Microscope Compatible

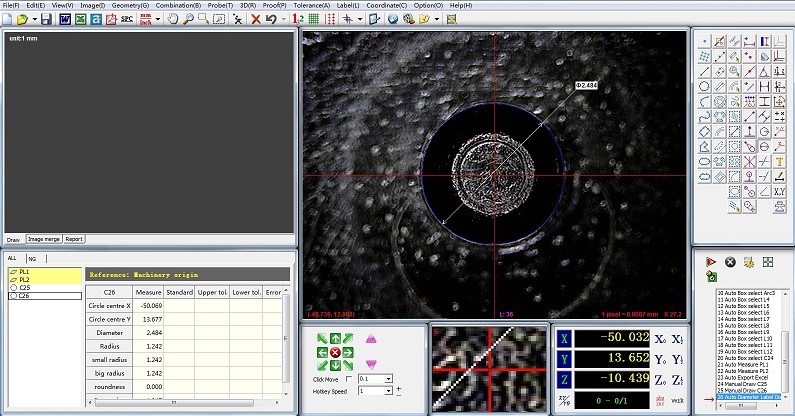

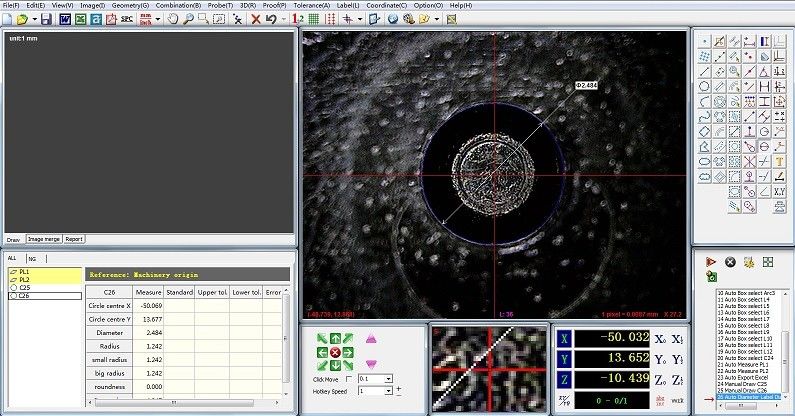

Powerful Geometry measuring function
Points / points group, 2 points / multiple points to get line, 3 points / multiple points to get circle or arc, distance between 2 points, average distance between 2 lines, distance between point and line, distance between 2 circle centers, distance between circle and line, angle and cross point of 2 lines.
Powerful construction function:
Offset, rotate, combining, parallel, vertical, mirror, crossing, tangent, users can use the function to create elements for assisting the complicated parts measuring.
Convenient label function
Direct label on the drawing area or the image area, the 2 areas are able to display the measuring result labels at the same time.
Geometric tolerance evaluating function included
Straightness, roundness, tapper etc.
The measuring parts are not required for aligning, the coordinates system offset, rotating, alignment function are available.
Window preset funtion
Based on users’ using habit, adjusting the window layout, setting the common use tools.
Image edge automatic detecting
Multiple automatic edge detecting tools included, increase the measuring efficiency.
Auto recognizing tools
Automatic recognize the circle, line and arc of the image.
Fuzzy eliminating function
Adjusting the CCD parameters setting, increase the adaptive capability, eliminating fuzzy function, to acquire the correct measuring data.

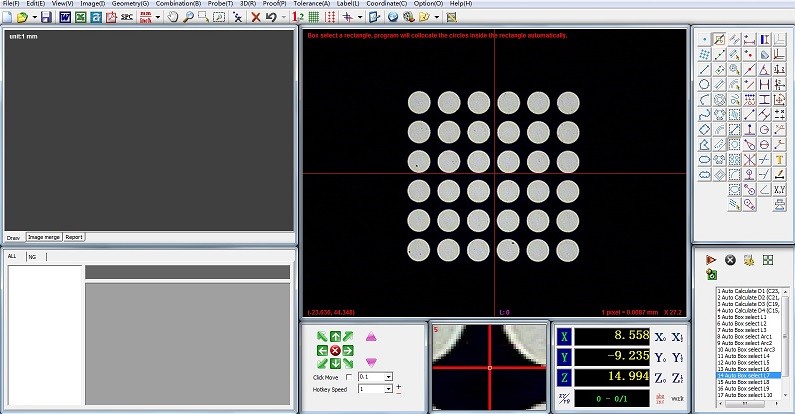

Rectangle measuring tools
Detecting 4 sides in one time, achieve fast measuring.
Multiple reports format
Users can set the Excel report format based on requirement.
The mechanical drawing is able to output to DXF file directly, achieve the 2D scanning function, compatible to multiple design software such as AutoCAD or Pro/E
Professional SPC function
Easy for users to achieve quality control data.
Auto focusing, automatic measuring, matrix measuring, the program is able to input DXF files, to achieve comparison with the part image or the measured graphic.
Auto focus assistance
Also it is possible to take 2 points in the image area to get the measuring error value.
With the optional touch probe accessories users can achieve 3D compound measuring. Perfect combination of the image and touch probe measuring, automatically switching by the measuring program, provides fast measuring for the complicated parts.
Real 3D Display
